Product Description

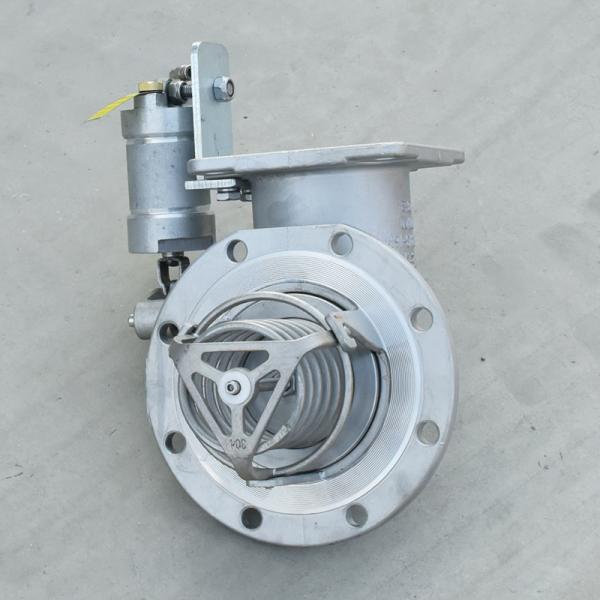

New 4" Stainless Steel 304 C4 316L Pneumatic Emergency Bottom Valve
Emergency cut-off valve also named bottom loading valve.It's installed at the bottomof the tank.The main of the valve was installed inside of the tank.When the pipeline or valve is accidentally broken or damaged,the tank can still be sealed.So this valve can improve the safety and reliability of transportation.The main body id made of carbon steel.This product id formed by precision casting as a whole,with simple structure,durability and convenient maintenance.316L material or C4 steel material can be selected as requirements of QC 932-2018 standard.
Feature:
1.The main material is high quality stainless steel,it's very strong,preservative and wear-resistant.
2.The pneumatic stainless steel emergency shut-off valve is equipped with an convenient.The reasonable structure design ensures the large flow rate.
3.When the valve is subjected to a strong collision,the valve body breaks at the cut-off groove,and the tank body is kept sealed,effectively preventing oil leakage.
| Product name | Stainless Steel Emergency Bottom Valve |
| Main Meterial | Stainless steel 304,C4,316L |
| Nominal diameter | DN100 |
| Nominal pressure | 0.6MPa |
| Design temperature | -20ºC~+180ºC |
| Weight | 13.5kg |
| Medium | Chemical material |
| Seal material | PTFE |
FAQ
Q: Are you trading company or manufacturer? A: We are factory.
Q:Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost
Q: :How long have you worked in this field?
A: Over 15 years. Q:What's the delivery time? A: Standard products will be arranged to ship in 7-10 days after full payment received. Q: Can your factory produce products according to our drawings or samples? A: Yes, of course we can.
